平頂鏈結構十分簡單，僅一塊兩側帶鉸圈的鏈板與一要銷軸。兩側鉸圈的一側與銷軸固定聯結，稱為固定鉸圈。另一側處在里檔的鉸圈與銷軸滾動聯結，稱為活動鉸圈?；顒鱼q圈與與銷軸構成了平頂鏈的鉸鏈。因平頂鏈使用時經常要與液態物質接觸，所以鏈板材料用不銹鋼制造居多，當然也有用工程塑料來制造的。鋼制平頂鏈的鉸圈是卷制而成的，所以鉸圈是有縫的，圓度不易保證。載荷大時還會被拉開，是一處薄弱環節。隨著工裝塑料的發展，工程塑料平頂鏈也憶開發出來。由于工程塑料的平頂鏈鏈板是澆鑄成型的，所以鏈板的結構可以按需要采用較為復雜的形狀。因為鏈板上都有加強肋，所以能提高鏈條的強度。雙彎加強肋鉸鄭式直行平頂鏈的強度并不比鋼制的簡單鉸卷式平頂鏈低。
Features：
Flat-top chain structure is very simple, only on both sides of a piece with hinged ring chain plate with a pin.On both sides of the hinge on one side of the circle and the pin shaft fixed connection, known as the fixed hinge.In the other side is archives circle of hinged with the rolling pin shaft coupling, called active hinge.Activity hinge circle and form the hinge of the flat chain with pin.Because of flat chain when using often want to contact with the liquid material, so the chain plate made of stainless steel material, of course also useful to manufacturing engineering plastics.Steel flat chain circle of hinge is developed, and so the hinge circle is a seam, roundness is not easy to guarantee.The load will be opened and is a weak link.With the development of plastic tooling, engineering plastic flat chain also have developed.As a result of the engineering plastic flat chain chain plate is cast molding, so the structure of the chain plate can according to need to adopt more complex shapes.Because the chain board has a stiffening rib, so can improve the strength of the chain.Double curved stiffened hinge zheng went flat top the strength of the chain is not lower than the simple hinge volume type flat steel chain.

應用

平頂鏈具有結構簡單、重量輕、制造和維修方便的優點。平頂鏈的頂板為輸送物料提供了一定寬度的水平承載面。頂板寬度按輸送物料的要求確定。鏈條與鏈輪嚙合時，鉸圈本身就是與鏈輪嚙合的部位。因平行排列的頂板鏈兩側間隙小，所以，只能作直線移動。就用平頂鏈時正確定裝十分重要。廣泛應用于直行板鏈輸送機的設計。多條并列的鏈板輸送機可用采用網帶輸送機來代替。

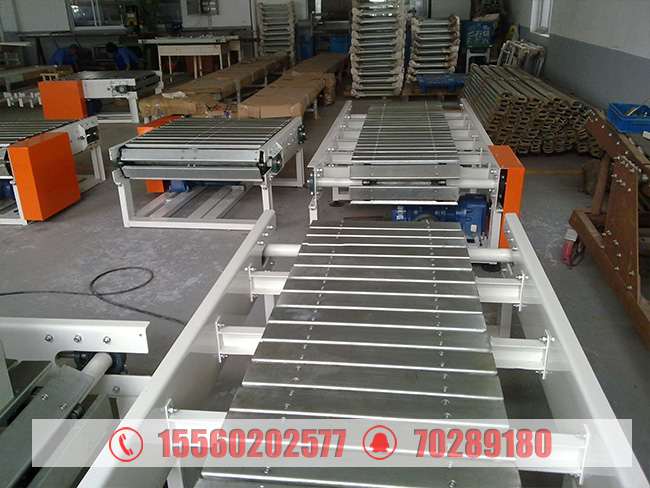

板鏈輸送機適用于形狀不規則物品的重載輸送。鏈條選用空心大輥子帶附件鏈條，在兩側同步鏈條的附件上用板狀構件連接使輸送方向形成連續的平板，因而運行平穩。該機與鏈式或輥筒輸送機配合使用可實現轉角輸送。
Applications：
Flat-top chain has a simple structure, the advantages of light weight, easy to manufacture and maintenance.Flat-top chain the roof for conveying material width of the level of the bearing surfaces.Top plate width is determined according to the requirement of the conveying material.Chain and sprocket meshing, hinged ring itself is one of the sprocket meshing area.For parallel arrangement of roof chain side clearance is small, so, can only make straight line movement.With flat-top chain is determined when the loading is very important.Widely used in straight andante chain conveyor design.Multiple coordinate chain conveyor mesh belt conveyor is used to replace available.
Plate chain conveyor is suitable for the irregular shape goods overload transportation.Chain choose hollow roller chain with attachments, with plate component synchronous chain accessories on both sides the conveying direction connection form the continuous tablet, thus smooth operation.This machine used with chain or roller conveyor can realize Angle conveyor.

材質

碳鋼、不銹鋼、熱塑鏈，根據產品的需要可選取不同寬度、不同形狀的頂板來完成直線、轉彎、升降等要求。
The material
Carbon steel, stainless steel, thermoplastic chain, according to the need of the product can choose different width, different shapes of roof to complete a straight line, turning and lifting requirements.

分類

因控制方式的不同，可分為連續運行式和間歇運行式。
classification
Because of the different methods of control, can be divided into continuous operation and intermittent operation.


主要技術參數：

鏈條節距：25.4mm~203.2mm

板鏈輸送機寬度：200mm~800mm

(寬度超過800mm時，可使用雙板鏈結構)

輸送速度：0.4m~15m/Min

輸送物品最大重量：800kg/m2

金屬板鏈工作環境溫度：-20℃~+120℃
The main technical parameters:
The chain pitch: 25.4 mm to 203.2 mm
Plate chain conveyor width: 200 mm to 800 mm
When more than 800 mm (width, can use the double plate chain structure)
Conveyor speed: 0.4 m to 15 m/Min
Delivery goods maximum weight: 800 kg/m2
Metal plate chain working environment temperature: - 20 ℃ ~ + 120 ℃


定制板鏈輸送機請請確認以下技術參數：

1.輸送物料的單件重量，物料的規格大小。

2.使用環境，環境溫度。

3.輸送速度（米/分鐘）。

4.安裝場地要求，布置形式。

5.是否需要調速。

 我公司可根據客戶要求重新設計。
Custom plate chain conveyor, please confirm the following parameters:
1. Conveying material piece weight, material of the specifications of the size.
2. Using the environment, the environment temperature.
3. Delivery speed (m/min).
4. Installation site requirement, decorate a form.
5. Whether you need speed.
Our company can according to customer requirements to design.
